Aluminium Frame 30w Led Post Top Garden Lights IP66 IK09

Brand Name : JD

Model Number : JD-1046 30w

Certification : CE.EMC.LVD.rohs

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 10000pcs/Month

Delivery Time : 15-30days

Packaging Details : 5 layer cartons+inner form

Material : ADC12 aluminum

Color : grey/dark grey/black

Ip rating : IP66

Working temperature(℃) : -40 - 50

Cri (ra>) : 75

Input voltage(v) : 100-240VAC

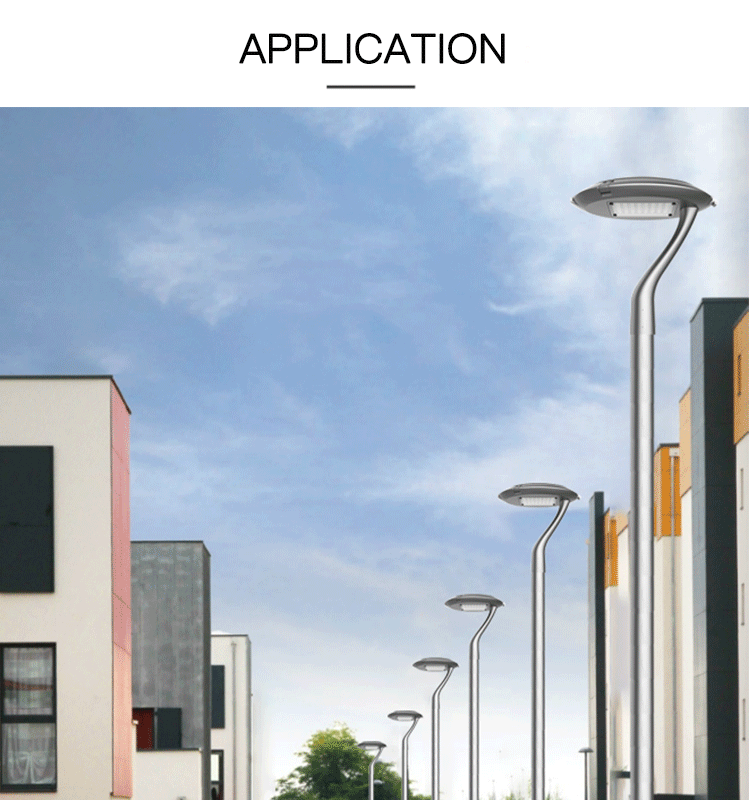

Application : Roadway,outdoor,garden

Lamp luminous efficiency(lm/w) : 125

Warranty(year) : 5

Working lifetime(hour) : 500000

Contact Now

Round Post Top LED products found

30w 60w 100w top post lighting

· Aluminium frame

· IP66, IK09

· Tool-free maintenance

· Fully detachable lens and gear compartment for ease of maintenance

· Built-in spigot with multiple rake angles

· Various optics available

· 70,000 hr rated LED lifetime

· Electrical isolation on opening

Features :

* Suitable to diameter 76mm pole.
* High brightness LED chips 100lm/w
* Dusk to dawn Photocell function available
* 0-10V Dimmable/DALI/PMMA available
* IP66 waterproof rating
* Different type lens for choice
* Working environment in -40℃to 51℃
* CE/ROHS/LM79/LM80 for quality assurance and safety operation
* IES files are available
* 5 years warranty

Specification :

Model	JD-1046A 30W	JD-1046B 60W	JD-1046 100W
Wattage	30W	60W	100W
Beam Angle	15050/15080/120*120 Degree
Luminous Flux	3000lm	6000lm	10000lm
Color Temperature	2700K~6500K
Input Voltage	AC100-277V, 50-60Hz
Life Hours	50,000
LED Chip	5050/ 3030 smd
CRI	Ra>80
PF	>0.92
Surge Voltage	10V/20KV
IP Rating	IP66
Dimension	L480W470H590mm

Product Details :

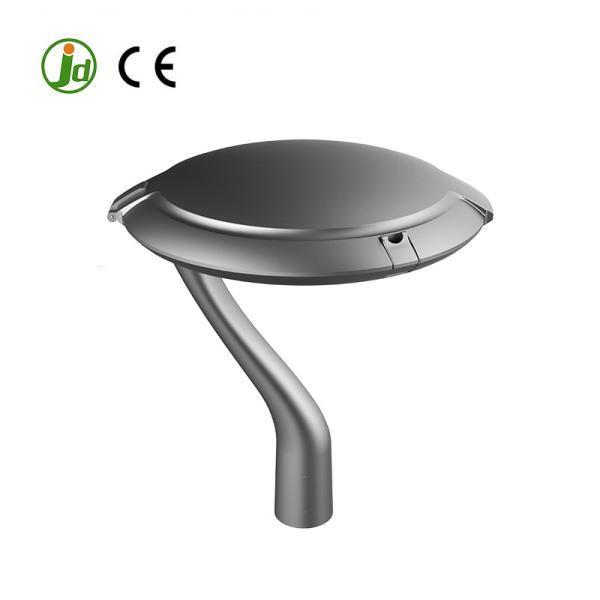

Aluminium Frame 30w Led Post Top Garden Lights IP66 IK09

Product distribution curve :

Aluminium Frame 30w Led Post Top Garden Lights IP66 IK09

Aluminium Frame 30w Led Post Top Garden Lights IP66 IK09
